音频放大器

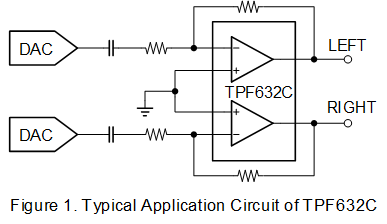

******产品特性： 3-VRMS Output into 2.5kΩ Load with 5V Supply ； 2-VRMS Output into 2.5kΩ Load with 3.3V Supply ； Integrated Charge Pump Generates Negative Supply Rail ； SNR Enhanced ； PVDD Power Off Delay Function ； Low THD+N: 0.001% ； Drives 600Ω Load ； Stable with 220pF Capacitive Load ； Pop-Free Under-Voltage Protection (TPF632C/605C) ； Pop-Free Enable Control ； –40°C to 85°C Operation Range ； Robust 8kV (Output-Pin) HBM ESD Rating On All Pins ； Robust 2kV CDM ESD Rating ； Green, Popular Type Package Applications ； ******典型应用： Set-Top Box ； Blue-ray and HD DVD Players ； PDP TV and LCD TV ； TPF632C.png ； ******产品概述： The 3PEAK TPF632C/605C/607C are 3-VRMS popfree stereo line drivers with the integrated charge pump generating the negative supply rail which allows the removal of the output DC-blocking capacitors. The devices are capable of driving 3-VRMS into a 2.5-kΩ
